Gauges & Meters

🚗 General Instructions for All Gauges & Meters

✨ You can add as many gauges/meters as you want.

⚙️ Analog Gauges

• Place the node at the pivot point where the needle should rotate.
• Make sure the pivot is at the needle base, so rotation sweeps correctly from Empty → Full.
• Align the needle in 3D space so it points at 0 value initially.
• Scale the needle to match your dashboard: adjust length & thickness.
• Multiple needles? Add numbers: x_gauge_fixed1, x_gauge_fixed2, …
• Each needle needs its own pivot node.

💻 Digital Meters

• Create a parent node with child nodes representing digits or states.
• Position & scale digits so they fit perfectly on your display.
• Name children sequentially: 0, 1, 2… and assign textures/materials.

📁 JSON Files

All configurations go here:

ModelExtras/data/<model_id_or_model_name>.jsonc

Example: ModelExtras/data/522.jsonc

🔧 Adapting Gauges to Your Model

• Match dashboard layout: pivot points, rotation angles, needle/digit positions.
• Check rotation direction: clockwise or counter-clockwise.
• Keep naming consistent if you have multiple gauges.
• Test in-game to ensure proper sweep & alignment.

---

📊 Analog Gauges

1️⃣ Fixed Gauge – x_gauge_fixed

• Displays a fixed/random value.
• Set the value in JSON: (ME will choose a random value without that range)

{
    "gauges": {
        "x_gauge_fixed1": {
            "minangle": 20,
            "maxangle": 70
        }
    }
}

---

2️⃣ Speed Gauge – x_sm

• Displays vehicle speed.
• Make sure needle rotates correctly according to your model’s scale.

{
    "gauges": {
        "x_sm2": {
            "maxspeed": 100.0,
            "maxrotation": 100.0,
            "kph": true
        }
    }
}

---

3️⃣ RPM Gauge – x_rpm

• Displays engine RPM (estimated).
• Align needle pivot with your RPM dial.

{
    "gauges": {
        "x_rpm3": {
            "maxrpm": 100.0,
            "maxrotation": 100.0
        }
     }
}

---

4️⃣ Turbo Gauge – x_tm

• Displays turbo pressure (estimated).
• Align the needle to match turbo gauge scale.

{
    "gauges": {
        "x_tm4": {
            "maxturbo": 100.0,
            "maxrotation": 100.0
        }
     }
}

---

💻 Digital Meters

5️⃣ Gear Indicator – x_gearmeter

• Shows current vehicle gear using textures.

Setup:

1. Create a parent object x_gearmeter.
2. Add child nodes for each gear.
3. Name children sequentially: 0, 1, 2…
4. Assign number textures.
5. Position & scale to fit the dashboard.

Hierarchy Example:

x_gearmeter
├── 0 (Texture: "0") // Reverse Gear
├── 1 (Texture: "1")
├── 2 (Texture: "2")
├── 3 (Texture: "3")
├── 4 (Texture: "4")
├── 5 (Texture: "5")

---

6️⃣ Mileage Indicator / Odometer – x_odometer

• Measures distance traveled, up to 6 digits (999999 max).

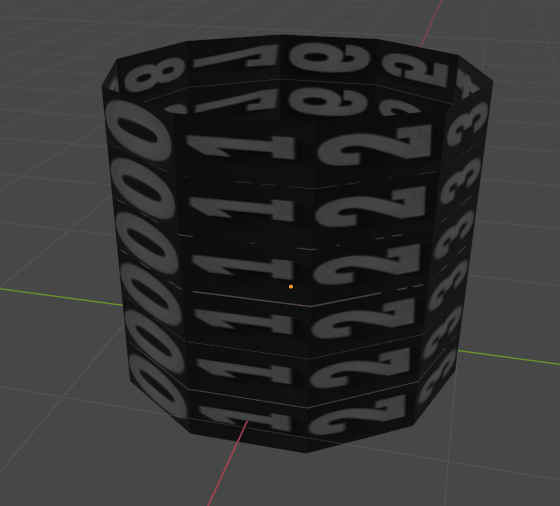

Setup for Analog Odometer:

1. Add dummy node x_odometer.
2. Add 6 cylinder-shaped objects (10 faces each) for digits.
3. Position, scale, and rotate cylinders to match dashboard.
4. Ensure digits are visible to the driver.

Hierarchy Example:

x_odometer
├── Cylinder_6 (10 faces)
├── Cylinder_5 (10 faces)
├── Cylinder_4 (10 faces)
├── Cylinder_3 (10 faces)
├── Cylinder_2 (10 faces)
├── Cylinder_1 (10 faces)

JSON Example:

{
    "gauges": {
        "x_odometer5": {
            "kph": true
        }
     }
}

Visual References:

7️⃣ Digital Clock – x_dclock

In-game hour & minute for the vehicle dashboard.

You need 10 models, one for each number from 0 to 9.

• These models will represent the digits of your speedometer.
• The order of the models matters — make sure they are arranged from 0 to 9.
• The position of digits doesn't matter; it will be deleted during the game.

Digit1, Digit2 are the positions for the hour & Digit3, Digit4 are for the minute.

JSON Example:

{
    "clocks": {
        "x_dclock1": {
            "12hformat": true
        }
     }
}
